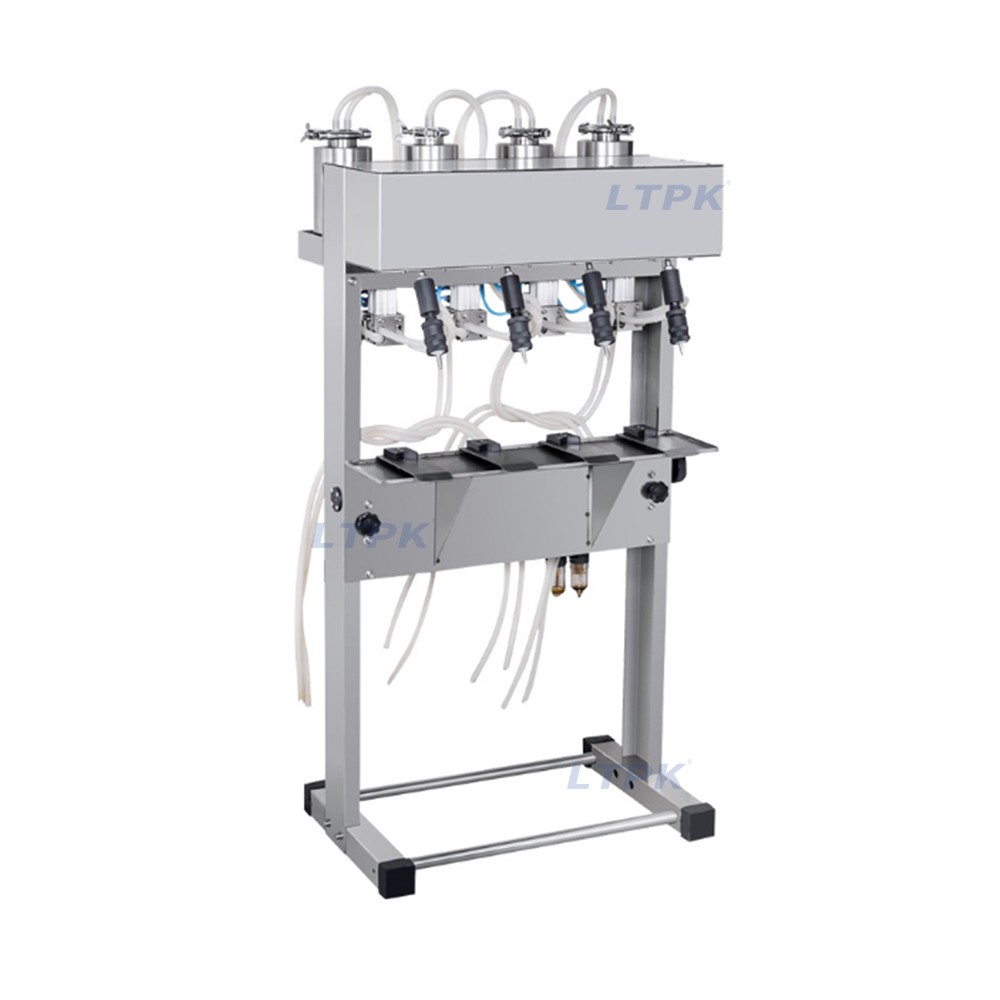

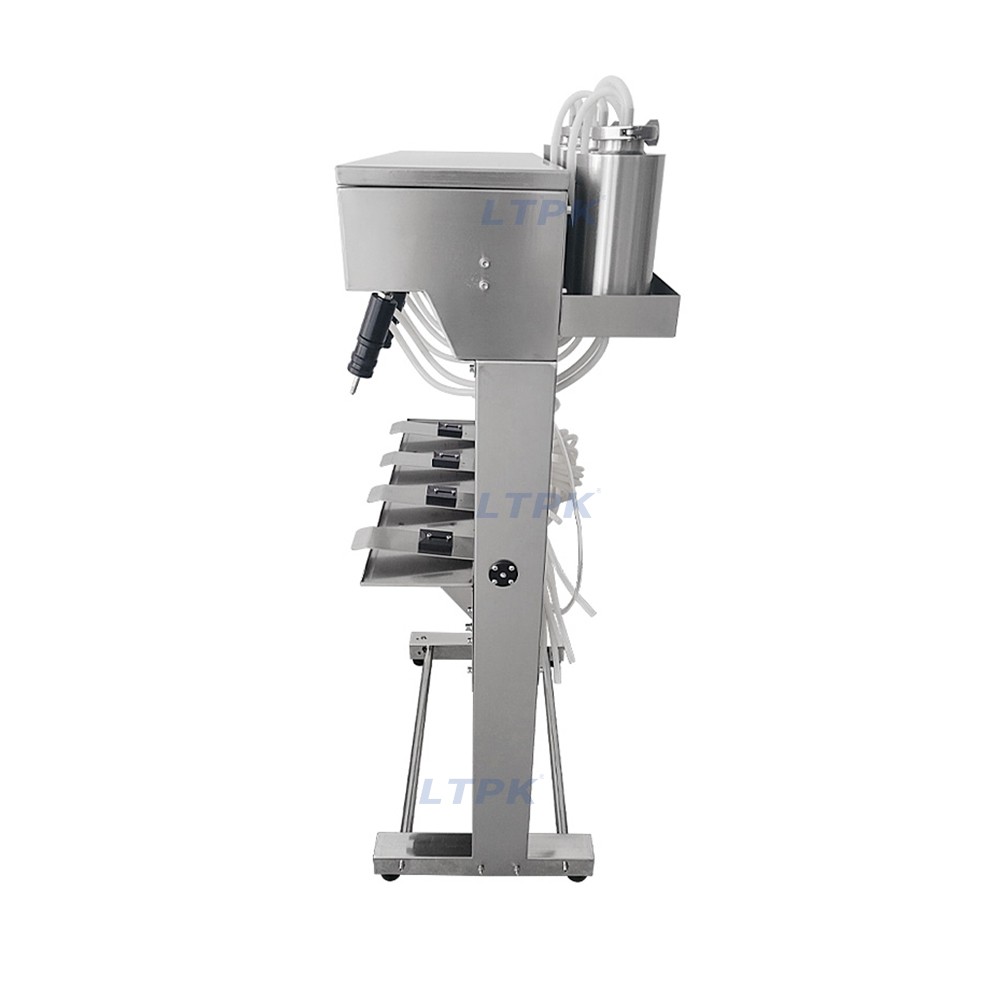

G4000 semi automatic perfume liquid filling machine with liquid level control filling design

G4000 semi automatic perfume liquid filling machine with liquid level control filling design

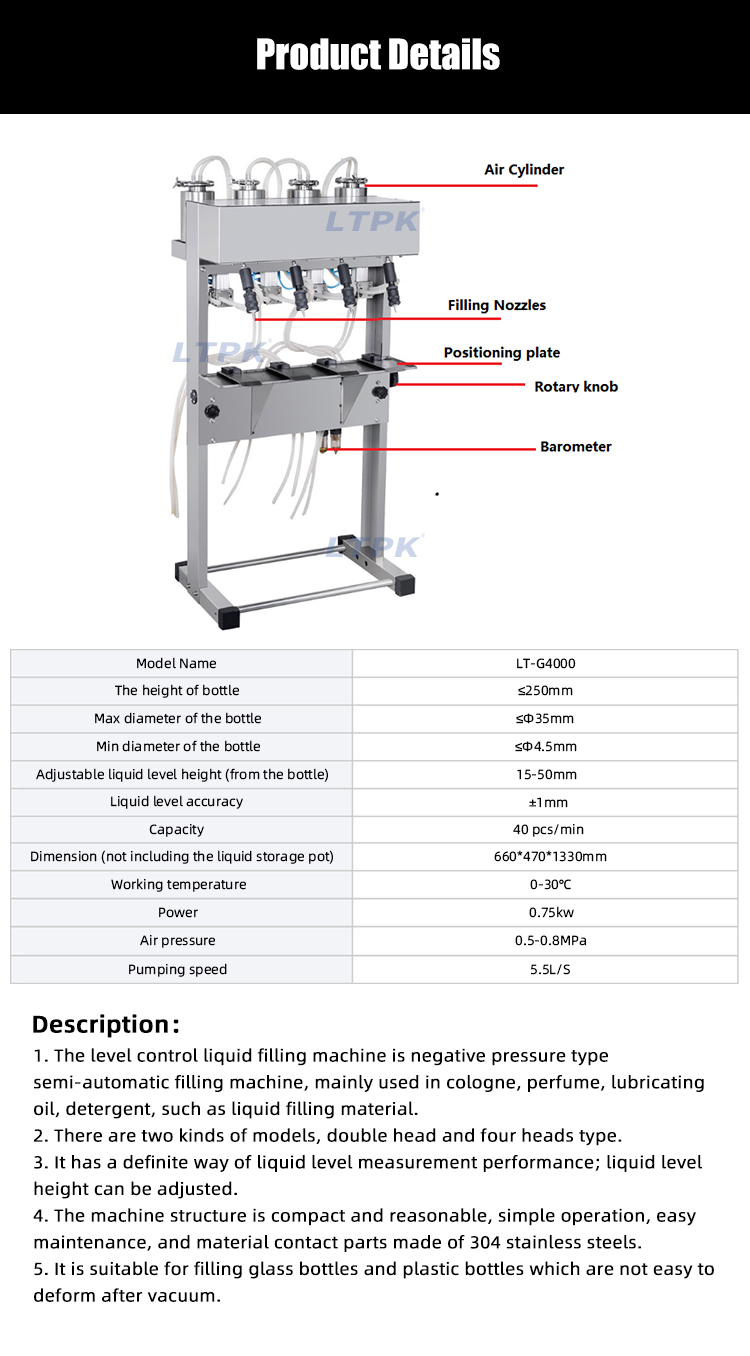

Model: LT-G4000
Power:0.75kw
Air pressure: 0.5-0.8MPa
Pumping speed: 5.5L/S
The height of bottle: ≤250mm
Max diameter of the bottle: ≤Φ35mm
Min diameter of the bottle: ≤Φ4.5mm
Adjustable liquid level height (from the bottle): 15-50mm
Liquid level accuracy: ±1mm
Capacity: 40 pcs/min
Dimension (not including the liquid storage pot) (L*W*H): 660*470*1330mm

Description

1. The level control liquid filling machine is negative pressure type semi-automatic filling machine, mainly used in cologne, perfume, lubricating oil, detergent, such as liquid filling material.

2. There are two kinds of models, double head and four heads type.

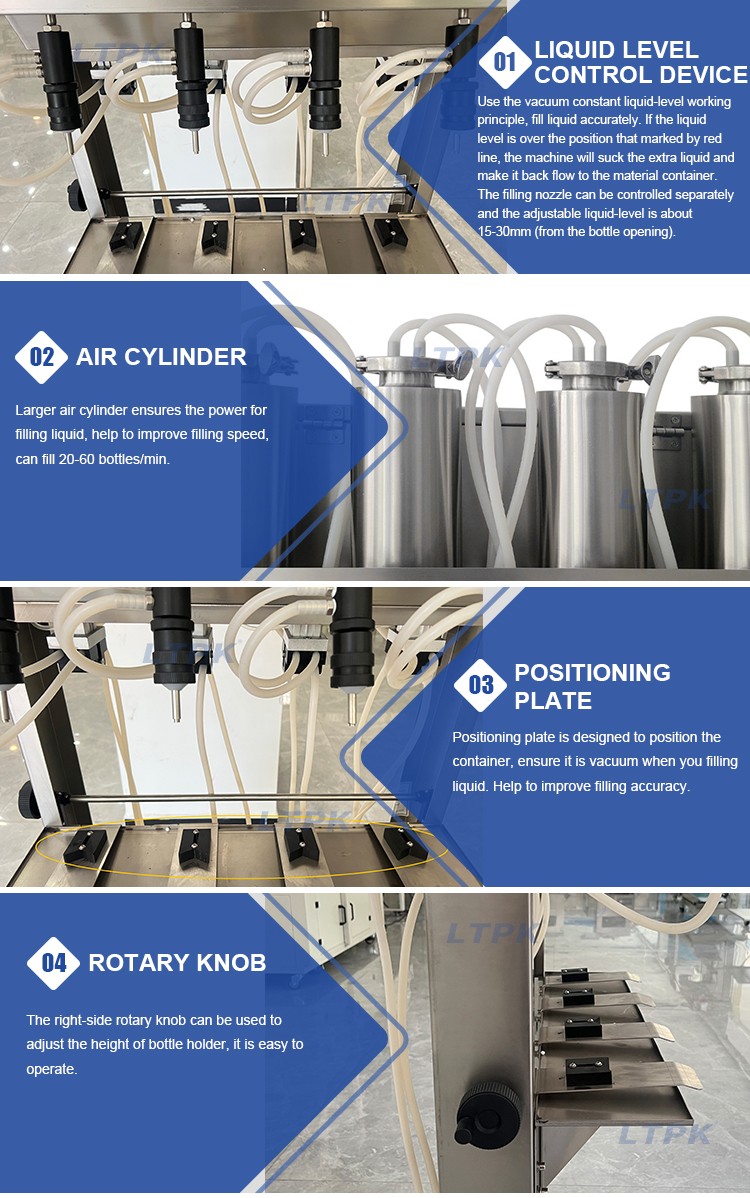

3. It has a definite way of liquid level measurement performance; liquid level height can be adjusted.

4. The machine structure is compact and reasonable, simple operation, easy maintenance, and material contact parts made of 304 stainless steels.

5. It is suitable for filling glass bottles and plastic bottles which are not easy to deform after vacuum.

Application:

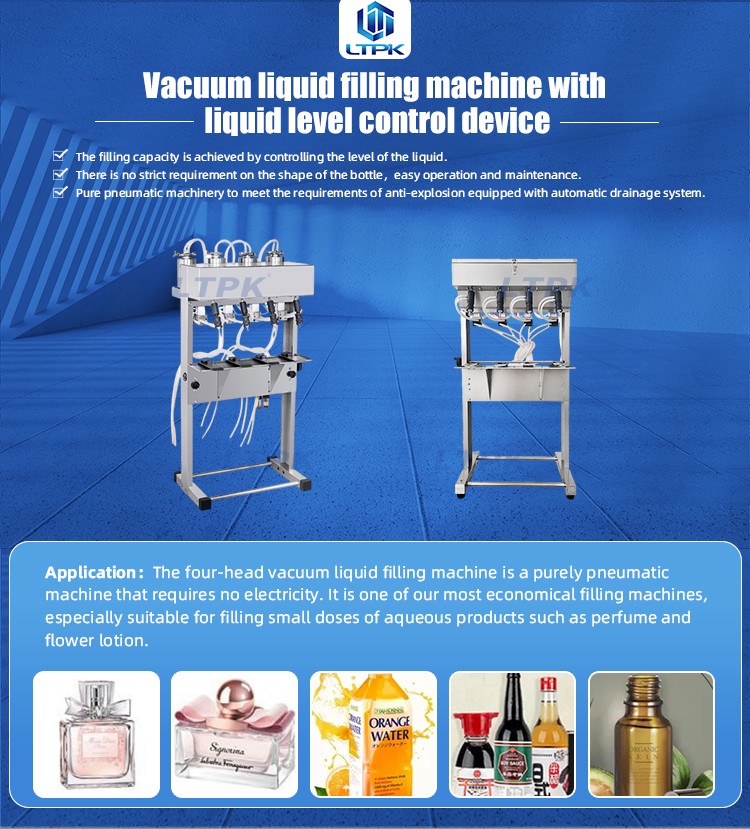

The four-head vacuum liquid filling machine is a purely pneumatic machine that requires no electricity. It is one of our most economical filling machines, especially suitable for filling small doses of aqueous products such as perfume and flower lotion.
