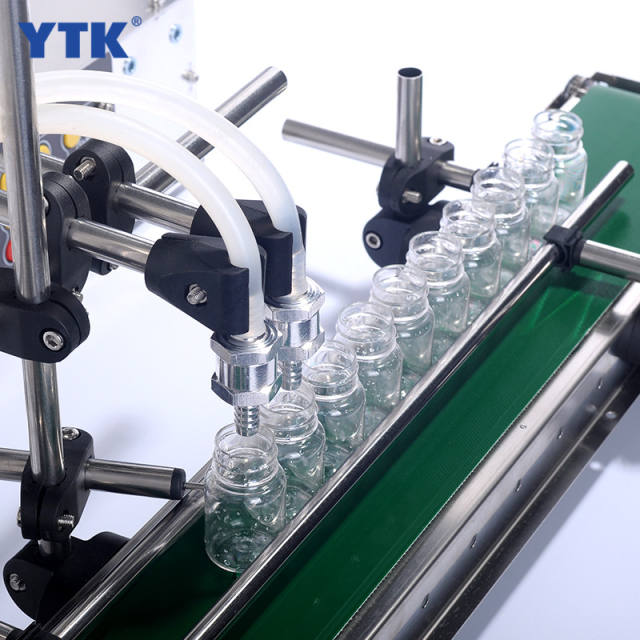

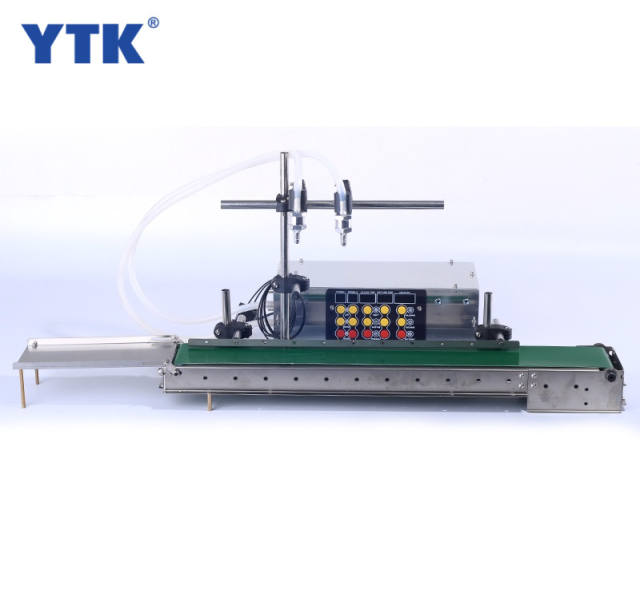

Tabletop Conveyor Belt Intelligent Liquid Filling Machine
Our this new design tabletop filling machine are widely used for drinks,liquor,soy sauce,juice ,milk,lotion,etc. And we have two type of machine for customer to choose.One is 1.5L/min 100℃,and the other is 3L/min 60℃. And they both can be matched the conveyor to prove the production efficiency.
Specification
Product Model: YTK-LJZ-D3000CW-A
Product Type: Diaphragm pump liquid filling machine
Voltage: 110v/220v 60w
Max. Liquid Temperature: <60℃
Max. Liquid Flow: 3L/min*2 (based on water)
Max Absorption Distance: 2M

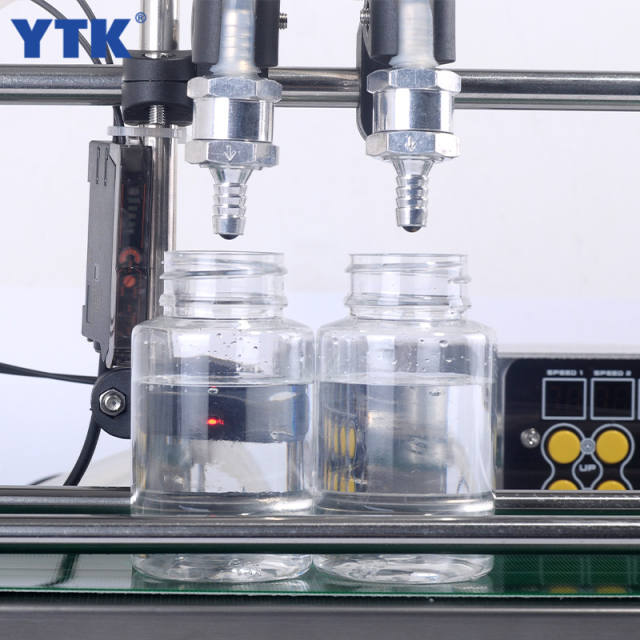

Nozzle diameter: 9mm (suitable for bottle inner diameter over 15mm)
Min Filling Volume: 10ml ( if need to fill under 10ml, need to buy extra syringe nozzle)

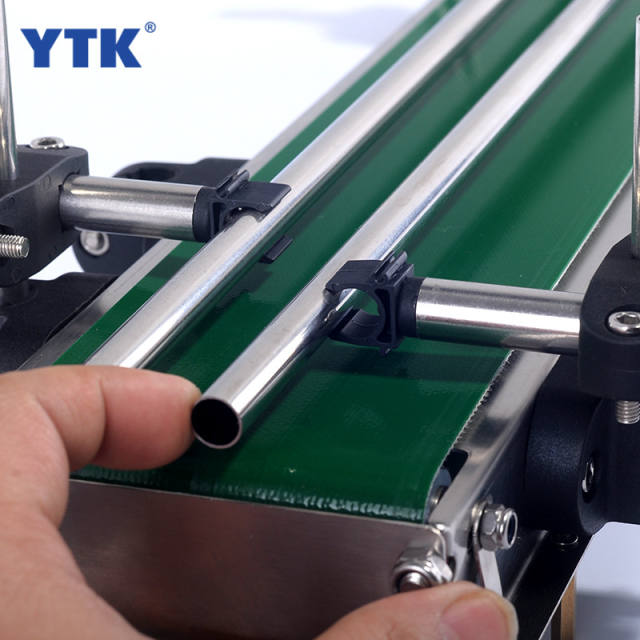

Conveyor size: 60*10*6cm+20cm(tray)
Conveyor max load: 6kg
Package(L*W*H): 66*20*18cm
Weight: 6KG
Application: Good fluidity, non-corrosive, such as: alcoholic beverages, essential oils, alcohol, beverages without impurities etc.
Optional choices:
1. we have peristaltic pump type if you need.
2. can add syringe type nozzle for 1-4ml range.
3. conveyor type also have different sizes.
if you need more options please contact me!








FAQ
Q: Why choose us?
A: We are factory, not just a trading company. Yason machine undergoes an extensive and strict testing and quality control
procedure, ensuring each and every item purchased meet global quality standards. Customize service is also provided.
Q: What about your warranty?
A: Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken (not including man made).
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation
and packing production in time.
Q: Shipping method
A: DHL, EMS, UPS and FEDEX are our choices. If you prefer other reliable shipping companies. Please leave a message to us.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
