YTK-AFC1 3 In 1 Full Automatic Eye Drops Liquids Filling Capping Machine

Name: YTK-AFC1 3 In 1 Full Automatic Eye Drops Liquids Filling Capping Machine
Brand: SHENZHEN YASON GENERAL MACHINERY CO., LTD
Price: 8300 USD
Availability: InStock
Rating: 5.0 (2 reviews)

5.0 (2)

3 Sold

$8,300.00 ~~$8,400.00~~

3 In 1 Full Automatic Filling Capping Machine
Small Bottles Filling Capping Rotary Machinery
This machine is customized type, the price need to confirm based on your bottles

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (5)

Description

Specification

Machine model	YTK-AFC1
Machine voltage	AC220V/110V 50-60HZ
Bottle diameter	25-50mm（Can Customize）
Bottle height	50-350mm
Working speed	0-40 bottles/min.(depending on liquid,bottle and caps)
Max power	300W
Air pressure	0.4-0.6MPa
Capping torsion	4-9kgf/cm
Conveyor size	About 2000100mm(LW)
Machine size	About 10158001560mm
Machine weight	About 341kg
Package size	About 22109801740mm
Package weight	About 411kg

Note: This machine is customized type, the price need to confirm based on your bottles

Detail Images

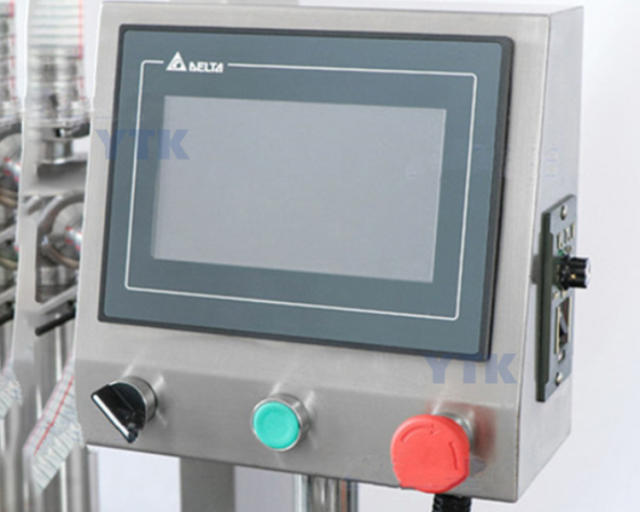

	Operation Panel The touch screen control panel makes the working parameter can be set easily it is no need to train operator,helps to improve working efficiency.The language of operation panel can be customized in different kinds of language,if you need this,please contact us.

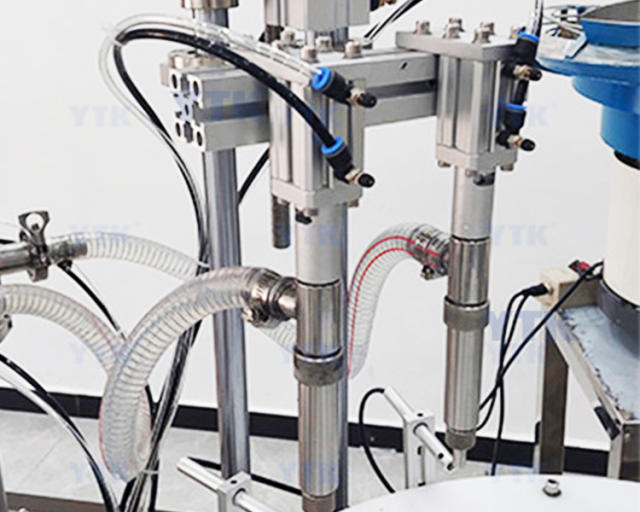

Filling Heads Equipped with two filling nozzles,and each one can be controlled separately The filling nozzle can be customized according to filling materials,makes the machine works better with your products This machine is equipped with high quality magnetic pump,ensures filling accuracy.
	Capping Heads This machine will tighten bottle caps by four rubber wheels,this kind of capping method is suitable for bottles with screws.The application range is wider.It is suitable for dropper bottles,spray bottles etc.
Vibratory Bowl Equipped with vibratory bowl,it can arrange bottle caps before capping reduce production labor and time.This cap sorter size should be customized according to cap size.
	Rotary Dish The rotary dish can help to fix and transport bottles during working.This dish should be customized according to bottle size.Change different rotary dish for different kinds of bottles.
